Pressure Balanced Expansion Joint Animation. To compute the force to deflect this type of pressure balanced expansion joint, add to the total forces outlined above, the force to deflect the unit laterally. These kind of expansion joints are used where there is limitation for the main anchors.

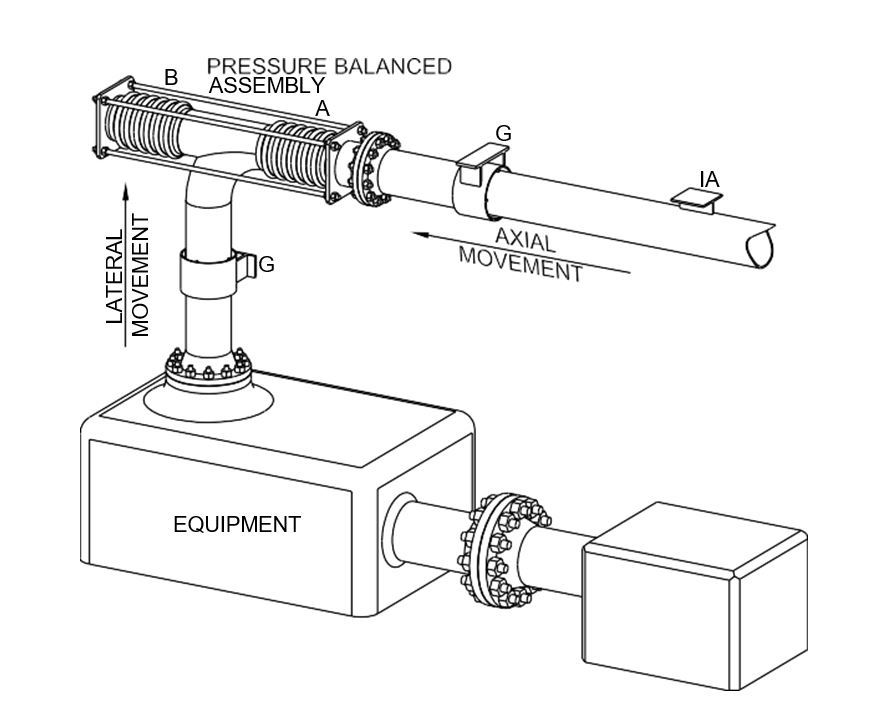

Pressure thrust force acting on the (middle) bellow is equalised by balancing bellows on either end through a set of tie rods. Pressure balanced expansion joints are designed to absorb movements from a pipe system. In this example, only an intermediate anchor is provided at the elbow, to isolate the equipment from any forces produced in the remaining piping.
Using A Pressurised Bellow Outside The System To Counteract Forces Generated By Bellow Inside The Systems, Large.
The operating principle is the same as the elbow type expansion joint, with an. Pressure balanced expansion joints are designed to absorb movements from a pipe system. Tying these bellows together neutralises the pressure load on the unit.
For Pressure Balanced Expansion Joint The Thrust Area Should Be Changed To Zero.

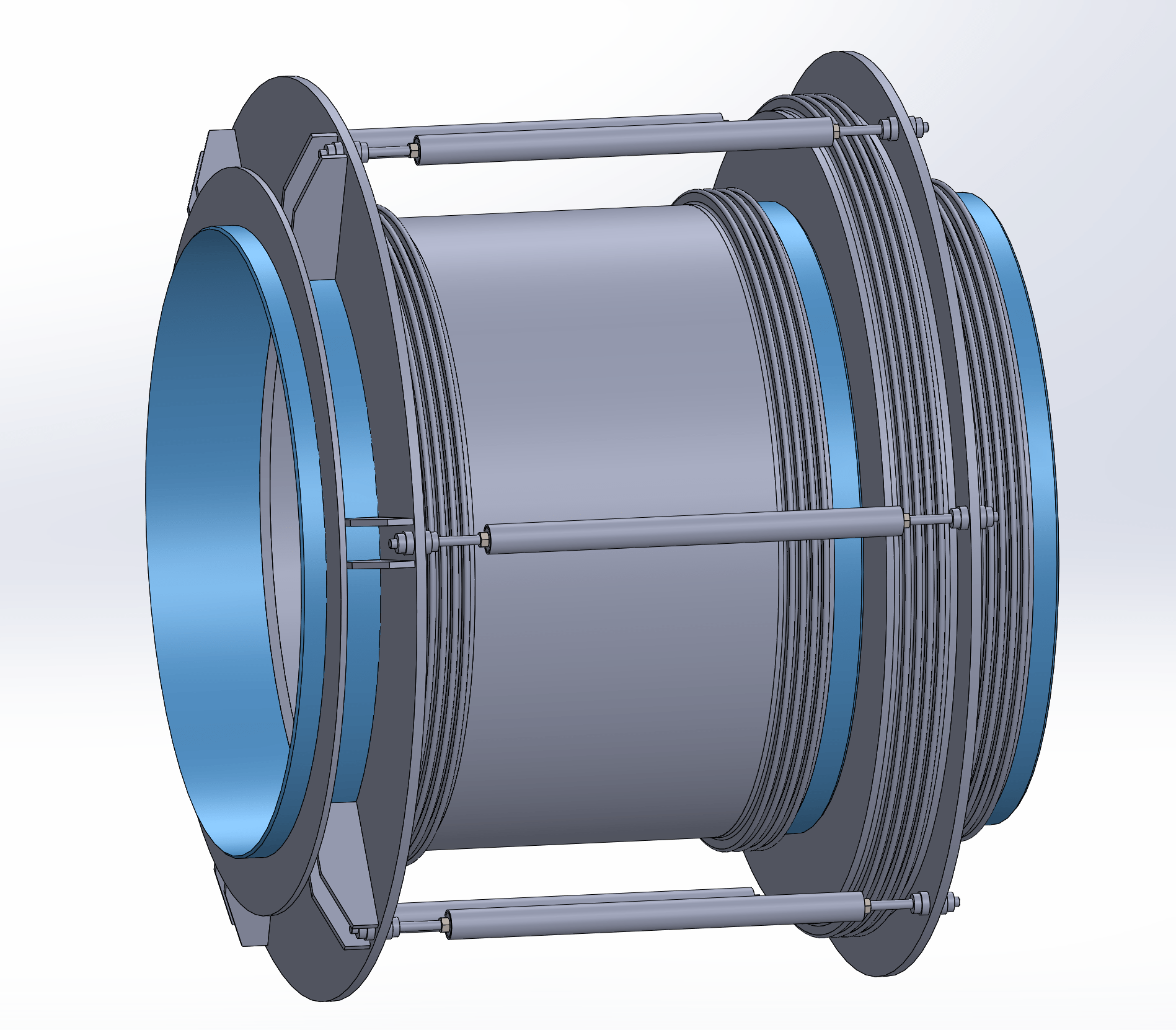

They can accommodate axial and lateral movements where anchoring of the pipe system is difficult or impractical due to structural or economic considerations. This type of expansion joint consists of two flow bellows and one balancing bellow. In addition to eliminating the pressure thrust, the expansion joint can accept axial compression, axial extension, lateral and angular movements.
To Compute The Force To Deflect This Type Of Pressure Balanced Expansion Joint, Add To The Total Forces Outlined Above, The Force To Deflect The Unit Laterally.
Inline pressure balanced expansion joints. An additional bellows is incorporated into the unit and is subject to the line pressure to generate a force Inline pressure balanced expansion joints are designed to abs.
The Unique Concept Of Pressure Balanced Expansion Joints(Pbexj) Is They Are Designed To Maintain A Constant Volume By Having Balancing Bellows Compensate For Volume Changes In The Bellows (Line Bellows) Which Is Moved By The Pipe.
Pressure balanced bellow are used in piping systems where pressure loads are critical.and where complex axial and lateral movements are involved when space is limited. Elbow pressure balanced expansion joints are designed to absorb axial and lateral movements. Pressure balanced expansion joints are used mainly at the systems like turbines, etc.
Oliver Piay, Karenwhen The Space/ Access Constrains Or The Excessive Magnitude Of The Axial Thrust Imposed By The Unbalance Area Of The Bellow, Under Interna.
These kind of expansion joints are used where there is limitation for the main anchors. In this example, only an intermediate anchor is provided at the elbow, to isolate the equipment from any forces produced in the remaining piping. Have a special tie bars and design reducing thrust force to zero.
